Product Center
Corrosion Protection, Thermal Insulation, Cold Preservation, Fire Resistance, Leak Repair — Five Product Lines Covering All Equipment Protection Scenarios

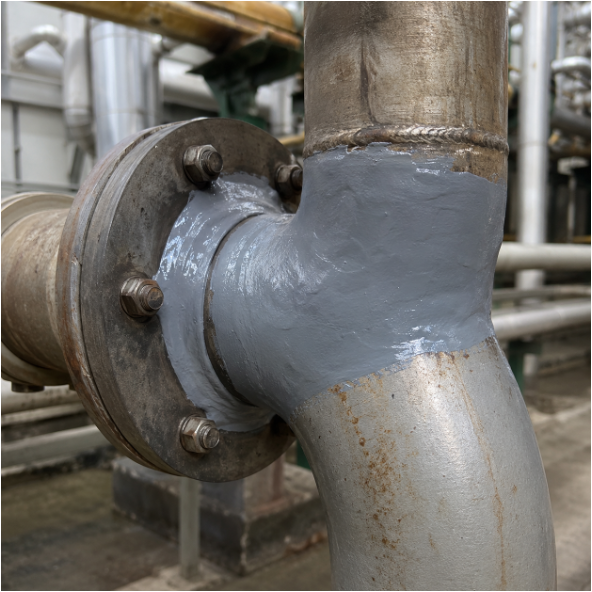

Corrosion-resistant coating
Specialized protective coating designed for humid environments and chemical exposure areas in food and beverage manufacturing facilities. Delivers exceptional adhesion and chemical resistance to prevent corrosion on pipes and equipment, extending asset life and reducing maintenance costs.
Use Cases
- Cooling Tower Repair • Condensate Pan Lining • Tank Linings • Secondary Containment / Secondary Containment Linings • Leak Repair • Flooring • Pipe Coatings • Clarifier Pools • Collection Systems • Anaerobic Digesters • Pump Stations • Manholes • General Corrosion Protection • Acid-Resistant Linings • Abrasion-Resistant Linings • External Surface Protective Coatings
Technical Advantages
- Seals leaks instantly and permanently
- Superior chemical corrosion resistance
- Can be applied by brush, roller, or spray; features self-leveling properties.
| Parameters | Specifications |
|---|---|
| Temperature Resistant | Dry heat resistance: Continuous: 104°C; Non-continuous: 121°C. Insulation layer temperature resistance: Continuous 79°C. |
| Adhesion strength | 1600 psi–2500 psi |
| Stretch ratio | 8%-300% |
| Coating Thickness | 0.254mm-0.508mm |
| Color options | Light Gray, Dark Gray, Black, Blue, Red, White |

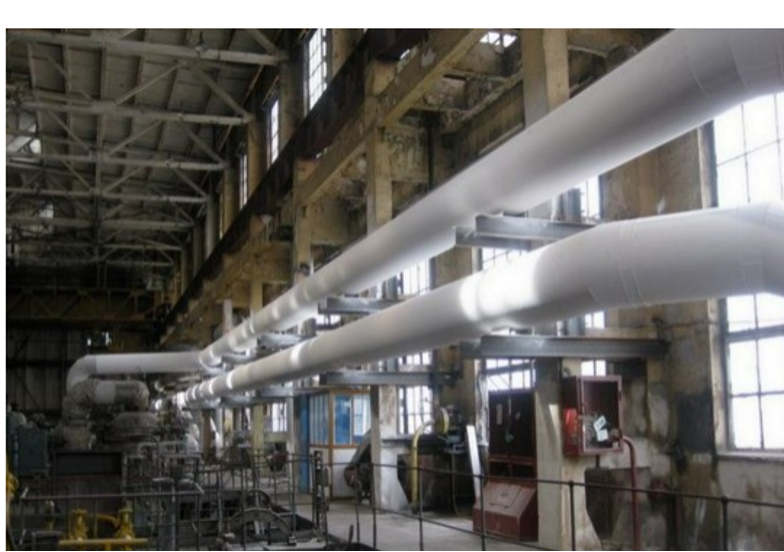

Insulation Coating
Insulation coating designed for high-temperature pipes and equipment. Effectively reduces heat loss, improves energy efficiency, and lowers pipe surface temperatures to enhance workplace safety.
Use Cases
- High-temperature pipeline insulation
- Insulation for High-Temperature Process Equipment
- Prevent burns
- Workshop ambient temperature control
Technical Advantages
- Low thermal conductivity with excellent insulation performance.
- Excellent high-temperature resistance
- Non-toxic and odorless, compliant with food industry standards.
- Easy to install; adapts to complex pipe shapes
| Parameters | Specifications |
|---|---|
| Operating Temperature Range | 80°C ~ 600°C |
| Thermal conductivity | ≤ 0.035 W/(m·K) |
| Temperature Rating | Long-term temperature resistance up to 600°C |
| Coating Thickness | 0.5-6 mm |
| Energy savings | Reduce heat loss by 30-50% |
Insulation Paint
Anti-condensation coating designed for cold-chain pipelines and low-temperature storage environments. Prevents external pipe condensation, maintains stable low temperatures, and ensures efficient cold-chain operations and food safety.
Use Cases
- Cold chain logistics pipeline insulation
- Low-temperature storage refrigeration piping
- Frozen food processing pipeline
- Condensate prevention for air conditioning cooling pipes
Technical Advantages
- Superior moisture and condensation resistance
- Prevent Under-Insulation Corrosion
- Reduce energy consumption
| Parameters | Specifications |
|---|---|
| Operating Temperature Range | -40°C ~ 20°C |
| Moisture resistance | Water Vapor Permeability < 0.02 |
| Low-temperature flexibility | -40°C, no cracks |
| Coating Thickness | 0.5-3 mm |
| Anti-condensation effect | Excellence |

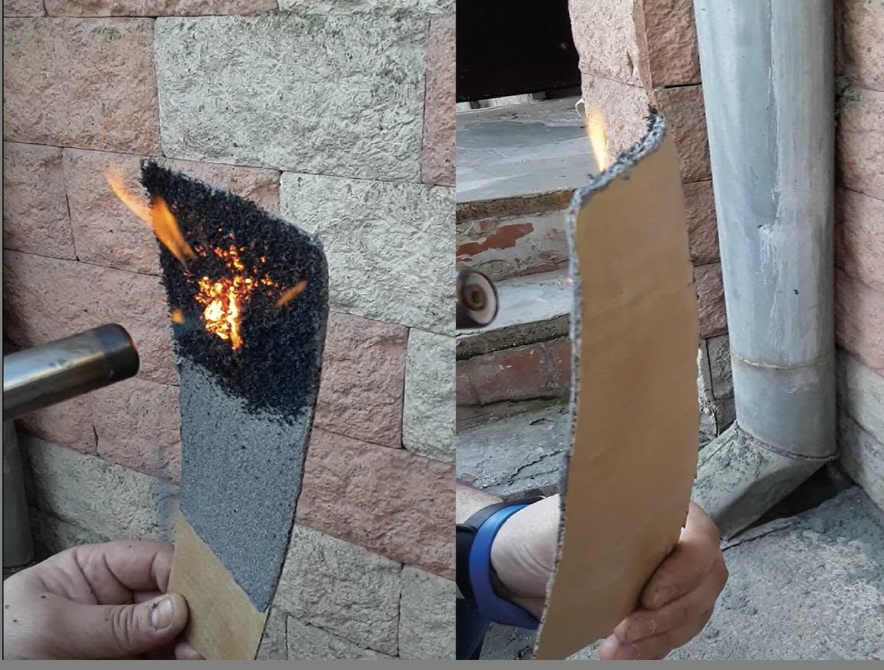

Fire-retardant coating
Fire-retardant coating designed for food industry pipelines. Effectively slows fire spread during a fire, buying critical time for evacuation and emergency response while enhancing the plant's overall fire safety level.
Use Cases
- Fire protection for pipelines in high-temperature workshops
- Fire-retardant treatment of pipelines in flammable areas
- Fire escape route pipe protection
- Piping in areas with high electrical equipment density
Technical Advantages
- Superior fire-resistant performance
- Forms a dense insulating layer at high temperatures
- Non-toxic, eco-friendly, and compliant with food industry standards
- Durable and long-lasting
| Parameters | Specifications |
|---|---|
| Fire Resistance Rating | 1.5 - 3 hours |
| Operating Temperature Range | -20°C ~ 600°C |
| Coating Thickness | 3-5 mm |
| Drying Time | Surface dry in 4h, fully cured in 48h |
| Environmental Grade | Non-toxic and odorless, meets food-grade standards. |

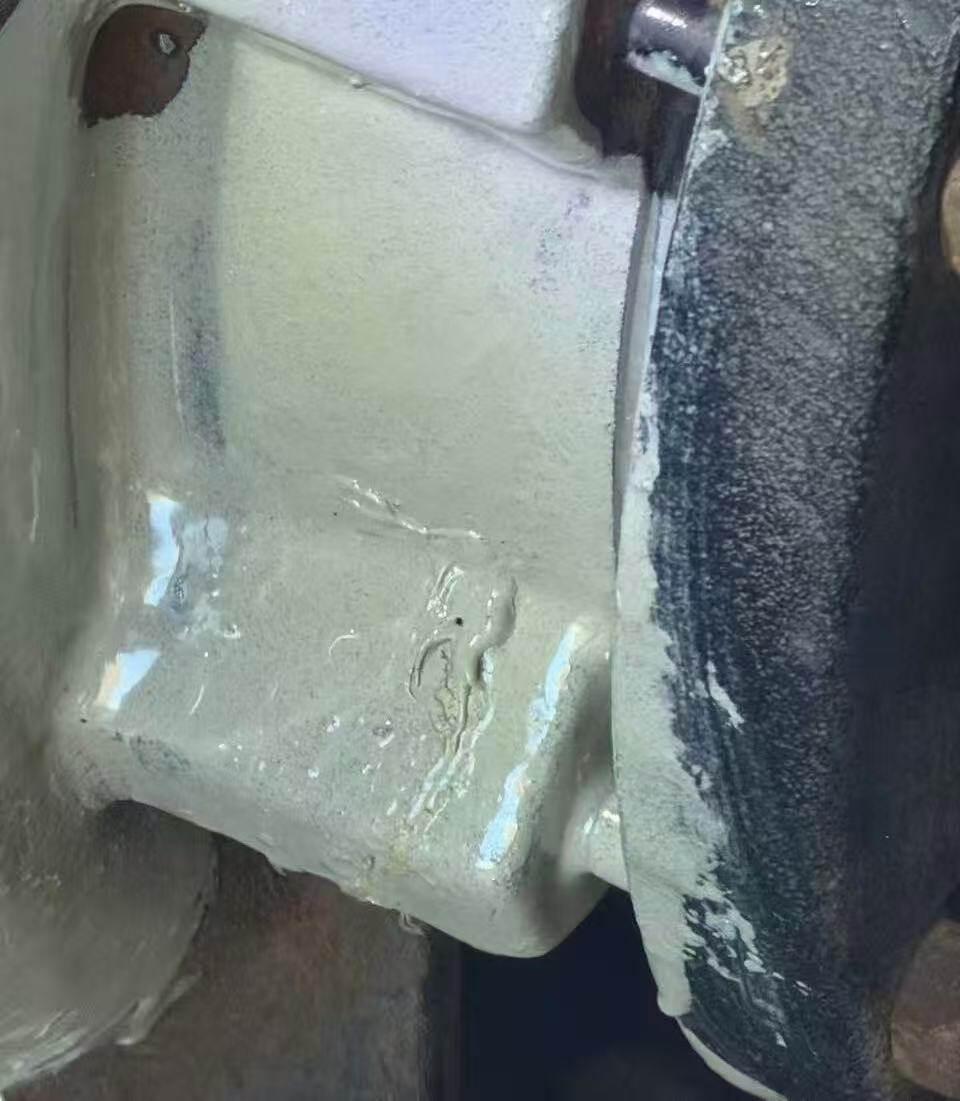

Leak-sealing paint
High-strength sealing coating engineered for pipeline leak repair. Stops leaks instantly and forms a durable protective layer to prevent further substrate corrosion, extending equipment lifespan.
Use Cases
- Emergency Pipeline Leak Repair
- Tank crack sealing
- Valve flange leak repair
- Anti-corrosion and sealing of equipment surfaces
Technical Advantages
- Rapid curing, instant leak stop
- High-strength adhesion with exceptional durability
- Chemical resistant, built for harsh environments
- Easy to install, no downtime required
| Parameters | Specifications |
|---|---|
| Curing time | Surface dry: 30 min, Fully cured: 24 h |
| Adhesion strength | ≥ 2000 psi |
| Temperature range | -40°C ~ 150°C |
| Coating Thickness | 1-3 mm |
| Chemical Resistance | Acid and alkali resistant, oil resistant |
Product Selection Guide
Quickly compare our five product lines to find the right solution for you.
| Comparison Items | Anti-corrosive coating | Insulation Coating | Insulation Paint | Fire-retardant coating | Mildew-resistant paint |
|---|---|---|---|---|---|
| Core Features | Prevent pipeline corrosion | Reduce heat loss | Prevent condensation and cold loss | Slow the spread of fire | Inhibits mold and bacteria growth |
| Operating Temperature | -20°C ~ 120°C | 80°C ~ 300°C | -40°C ~ 20°C | -20°C ~ 600°C | -20°C ~ 80°C |
| Typical Scenarios | Damp environments, chemical areas | Steam lines, high-temperature pipes | Cold chain pipelines, low-temperature warehousing | High-temperature workshop, flammable area | High-humidity workshops and cold storage rooms |
| Key Features | Chemical-resistant and highly adhesive | Low thermal conductivity, high-temperature resistant | Moisture-resistant, anti-condensation | Fire-resistant and heat-insulating | Mold-resistant, antibacterial, and moisture-tolerant |
| Food Safety | Meets food contact standards | Non-toxic and odorless certified | Meets cold chain hygiene standards | Non-toxic & Eco-certified | Food-grade antibacterial certification |
